Component API Reference

This document was created to help developers author and use Pipedream components. Not only can you develop sources (workflow triggers) and actions using the component API, but you can also develop Node.js steps right in your workflows - without leaving your browser! You can publish components to your account for private use, or contribute them to the Pipedream registry for anyone to run.

While sources and actions share the same core component API, they differ in both how they're used and written, so certain parts of the component API apply only to one or the other. This section of the docs explains the core differences. When this document uses the term "component", the corresponding feature applies to both sources and actions. If a specific feature applies to only sources or actions, the correct term will be used.

If you have any questions about component development, please reach out in our community.

Overview

What is a component?

Components are Node.js modules that run on Pipedream's serverless infrastructure.

• Trigger Node.js code on HTTP requests, timers, cron schedules, or manually
• Emit data on each event to inspect it. Trigger Pipedream hosted workflows or access it outside of Pipedream via API
• Accept user input on deploy via CLI, API, or UI
• Connect to 2,000+ apps using Pipedream managed auth
• Use most npm packages with no npm install or package.json required
• Store and retrieve state using the built-in key-value store

Quickstarts

To help you get started, we created a step-by-step walkthrough for developing both sources and actions. We recommend starting with those docs and using the API reference below as you develop.

Differences between sources and actions

Sources and actions share the same component API. However, certain features of the API only apply to one or the other:

• Actions are defined with type: action (see the docs on the type property). Sources require no type property be set. Components without a type are considered sources.

• Sources emit events using this.$emit, which trigger linked workflows. Any features associated with emitting events (e.g., dedupe strategies) can only be used with sources. Actions return data using return or $.export, which is made available to future steps of the associated workflow.

• Sources have access to lifecycle hooks, which are often required to configure the source to listen for new events. Actions do not have access to these lifecycle hooks.

• Actions have access to a special $ variable, passed as a parameter to the run method. This variable exposes functions that allow you to send data to destinations, export data from the action, return HTTP responses, and more.

• Sources can be developed iteratively using pd dev. Actions currently cannot (please follow this issue to be notified of updates).

• You use pd deploy to deploy sources to your account. You use pd publish to publish actions, making them available for use in workflows.

• You can attach interfaces (like HTTP endpoints, or timers) to sources. This defines how the source is invoked. Actions do not have interfaces, since they're run step-by-step as a part of the associated workflow.

Getting Started with the CLI

Several examples below use the Pipedream CLI. To install it, follow the instructions for your OS / architecture.

See the CLI reference for detailed usage and examples beyond those covered below.

Example Components

You can find hundreds of example components in the components/ directory of the PipedreamHQ/pipedream repo.

Component API

Component Structure

Pipedream components export an object with the following properties:

export default {
  name: "",
  key: "",
  type: "",
  version: "",
  description: "",
  props: {},
  methods: {},
  hooks: {
    async activate() {},
    async deactivate() {},
    async deploy() {},
  },
  dedupe: "",
  async run(event) {
    this.$emit(event);
  },
};

Props

Props are custom attributes you can register on a component. When a value is passed to a prop attribute, it becomes a property on that component instance. You can reference these properties in component code using this (e.g., this.propName).

User Input Props

User input props allow components to accept input on deploy. When deploying a component, users will be prompted to enter values for these props, setting the behavior of the component accordingly.

General

Definition

props: {
  myPropName: {
    type: "",
    label: "",
    description: "",
    options: [], // OR async options() {} to return dynamic options
    optional: true || false,
    propDefinition: [],
    default: "",
    secret: true || false,
    min: <integer>,
    max: <integer>,
    disabled: true || false,
    hidden: true || false
  },
},

Prop Types

Usage

Example

Following is an example source that demonstrates how to capture user input via a prop and emit it on each event:

export default {
  name: "User Input Prop Example",
  version: "0.1",
  props: {
    msg: {
      type: "string",
      label: "Message",
      description: "Enter a message to `console.log()`",
    },
  },
  async run() {
    this.$emit(this.msg);
  },
};

To see more examples, explore the curated components in Pipedream's GitHub repo.

Advanced Configuration

Async Options (example)

Async options allow users to select prop values that can be programmatically-generated (e.g., based on a real-time API response).

async options({
  page,
  prevContext,
  query,
}) {},

Following is an example source demonstrating the usage of async options:

export default {
  name: "Async Options Example",
  version: "0.1",
  props: {
    msg: {
      type: "string",
      label: "Message",
      description: "Select a message to `console.log()`",
      async options() {
        // write any node code that returns a string[] or object[] (with label/value keys)
        return ["This is option 1", "This is option 2"];
      },
    },
  },
  async run() {
    this.$emit(this.msg);
  },
};

Prop Definitions (example)

Prop definitions enable you to reuse props that are defined in another object. A common use case is to enable re-use of props that are defined for a specific app.

props: {
  myPropName: {
    propDefinition: [
      app,
      "propDefinitionName",
      inputValues
    ]
  },
},


Following is an example source that demonstrates how to use propDefinitions.

const rss = {
  type: "app",
  app: "rss",
  propDefinitions: {
    urlDef: {
      type: "string",
      label: "RSS URL",
      description: "Enter a URL for an RSS feed.",
    },
  },
};

export default {
  name: "Prop Definition Example",
  description: `This component captures an RSS URL and logs it`,
  version: "0.1",
  props: {
    rss,
    url: { propDefinition: [rss, "urlDef"] },
  },
  async run() {
    console.log(this.url);
  },
};

Referencing values from previous props

When you define a prop in an app file, and that prop depends on the value of another prop, you'll need to pass the value of the previous props in a special way. Let's review an example from Trello, a task manager.

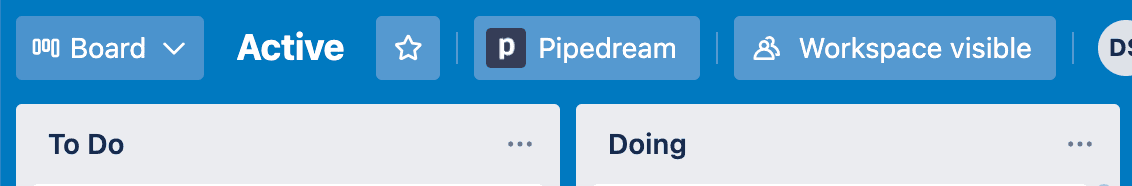

You create Trello boards for new projects. Boards contain lists. For example, this Active board contains two lists:

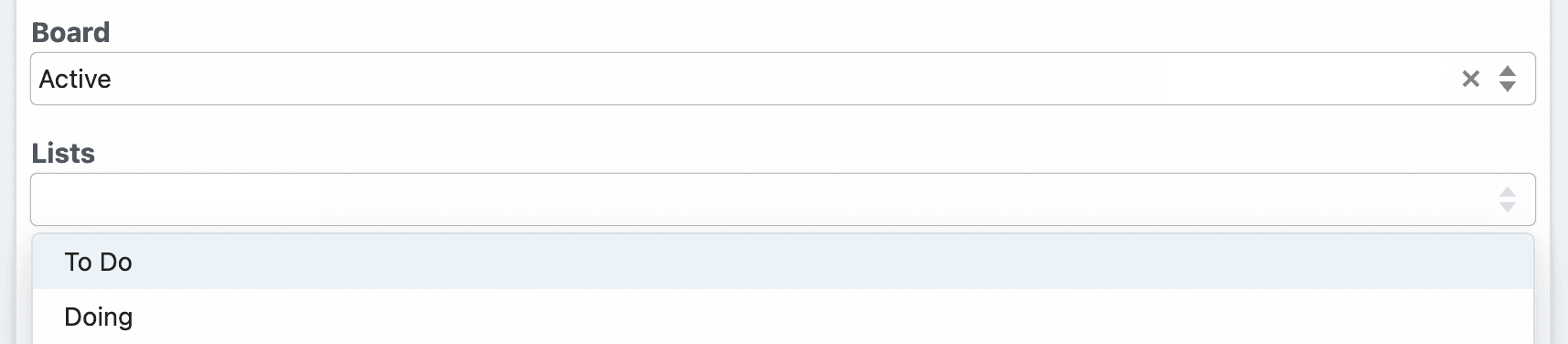

In Pipedream, users can choose from lists on a specific board:

Both Board and Lists are defined in the Trello app file:

board: {
  type: "string",
  label: "Board",
  async options(opts) {
    const boards = await this.getBoards(this.$auth.oauth_uid);
    const activeBoards = boards.filter((board) => board.closed === false);
    return activeBoards.map((board) => {
      return { label: board.name, value: board.id };
    });
  },
},
lists: {
  type: "string[]",
  label: "Lists",
  optional: true,
  async options(opts) {
    const lists = await this.getLists(opts.board);
    return lists.map((list) => {
      return { label: list.name, value: list.id };
    });
  },
}

In the lists prop, notice how opts.board references the board. You can pass opts to the prop's options method when you reference propDefinitions in specific components:

board: { propDefinition: [trello, "board"] },
lists: {
  propDefinition: [
    trello,
    "lists",
    (configuredProps) => ({ board: configuredProps.board }),
  ],
},

configuredProps contains the props the user previously configured (the board). This allows the lists prop to use it in the options method.

Dynamic props

Some prop definitions must be computed dynamically, after the user configures another prop. We call these dynamic props, since they are rendered on-the-fly. This technique is used in the Google Sheets Add Single Row action, which we'll use as an example below.

First, determine the prop whose selection should render dynamic props. In the Google Sheets example, we ask the user whether their sheet contains a header row. If it does, we display header fields as individual props:

To load dynamic props, the header prop must have the reloadProps field set to true:

hasHeaders: {
  type: "string",
  label: "Does the first row of the sheet have headers?",
  description: "If the first row of your document has headers we'll retrieve them to make it easy to enter the value for each column.",
  options: [
    "Yes",
    "No",
  ],
  reloadProps: true,
},

When a user chooses a value for this prop, Pipedream runs the additionalProps component method to render props:

async additionalProps() {
  const sheetId = this.sheetId?.value || this.sheetId;
  const props = {};
  if (this.hasHeaders === "Yes") {
    const { values } = await this.googleSheets.getSpreadsheetValues(sheetId, `${this.sheetName}!1:1`);
    if (!values[0]?.length) {
      throw new ConfigurationError("Cound not find a header row. Please either add headers and click \"Refresh fields\" or adjust the action configuration to continue.");
    }
    for (let i = 0; i < values[0]?.length; i++) {
      props[`col_${i.toString().padStart(4, "0")}`] = {
        type: "string",
        label: values[0][i],
        optional: true,
      };
    }
  } else if (this.hasHeaders === "No") {
    props.myColumnData = {
      type: "string[]",
      label: "Values",
      description: "Provide a value for each cell of the row. Google Sheets accepts strings, numbers and boolean values for each cell. To set a cell to an empty value, pass an empty string.",
    };
  }
  return props;
},

The signature of this function is:

async additionalProps(previousPropDefs)

where previousPropDefs are the full set of props (props merged with the previous additionalProps). When the function is executed, this is bound similar to when the run function is called, where you can access the values of the props as currently configured, and call any methods. The return value of additionalProps will replace any previous call, and that return value will be merged with props to define the final set of props.

Following is an example that demonstrates how to use additionalProps to dynamically change a prop's disabled and hidden properties:

async additionalProps(previousPropDefs) {
  if (this.myCondition === "Yes") {
    previousPropDefs.myPropName.disabled = true;
    previousPropDefs.myPropName.hidden = true;
  } else {
    previousPropDefs.myPropName.disabled = false;
    previousPropDefs.myPropName.hidden = false;
  }
  return previousPropDefs;
},

Dynamic props can have any one of the following prop types:

• app
• boolean
• integer
• string
• object
• any
• $.interface.http
• $.interface.timer
• data_store
• http_request

Interface Props

Interface props are infrastructure abstractions provided by the Pipedream platform. They declare how a source is invoked — via HTTP request, run on a schedule, etc. — and therefore define the shape of the events it processes.

Timer

To use the timer interface, declare a prop whose value is the string $.interface.timer:

Definition

props: {
  myPropName: {
    type: "$.interface.timer",
    default: {},
  },
}

Usage

Example

Following is a basic example of a source that is triggered by a $.interface.timer and has default defined as a cron expression.

export default {
  name: "Cron Example",
  version: "0.1",
  props: {
    timer: {
      type: "$.interface.timer",
      default: {
        cron: "0 0 * * *", // Run job once a day
      },
    },
  },
  async run() {
    console.log("hello world!");
  },
};

Following is an example source that's triggered by a $.interface.timer and has a default interval defined.

export default {
  name: "Interval Example",
  version: "0.1",
  props: {
    timer: {
      type: "$.interface.timer",
      default: {
        intervalSeconds: 60 * 60 * 24, // Run job once a day
      },
    },
  },
  async run() {
    console.log("hello world!");
  },
};

HTTP

To use the HTTP interface, declare a prop whose value is the string $.interface.http:

props: {
  myPropName: {
    type: "$.interface.http",
    customResponse: true, // optional: defaults to false
  },
}

Definition

Usage

Responding to HTTP requests

The HTTP interface exposes a respond() method that lets your source issue HTTP responses. You may run this.http.respond() to respond to the client from the run() method of a source. In this case you should also pass the customResponse: true parameter to the prop.

HTTP Event Shape

Following is the shape of the event passed to the run() method of your source:

{
  method: 'POST',
  path: '/',
  query: {},
  headers: {},
  bodyRaw: '',
  body:
}

Example

Following is an example source that's triggered by $.interface.http and returns { 'msg': 'hello world!' } in the HTTP response. On deploy, Pipedream will generate a unique URL for this source:

export default {
  name: "HTTP Example",
  version: "0.0.1",
  props: {
    http: {
      type: "$.interface.http",
      customResponse: true,
    },
  },
  async run(event) {
    this.http.respond({
      status: 200,
      body: {
        msg: "hello world!",
      },
      headers: {
        "content-type": "application/json",
      },
    });
    console.log(event);
  },
};

Service Props

DB

Definition

props: {
  myPropName: "$.service.db",
}

Usage

App Props

App props are normally defined in an app file, separate from individual components. See the components/ directory of the pipedream GitHub repo for example app files.

Definition

props: {
  myPropName: {
    type: "app",
    app: "",
    propDefinitions: {}
    methods: {},
  },
},

Usage

Note: The specific $auth keys supported for each app will be published in the near future.

HTTP Request Prop

Usage

Example

Following is an example action that demonstrates how to accept an HTTP request configuration as input and execute the request when the component is run:

export default {
  name: "HTTP Request Example",
  version: "0.0.1",
  props: {
    httpRequest: {
      type: "http_request",
      label: "API Request",
      default: {
        method: "GET",
        url: "https://jsonplaceholder.typicode.com/posts",
      }
    },
  },
  async run() {
    const { data } = await this.httpRequest.execute();
    return data;
  },
};

For more examples, see the docs on making HTTP requests with Node.js.

Alert Prop

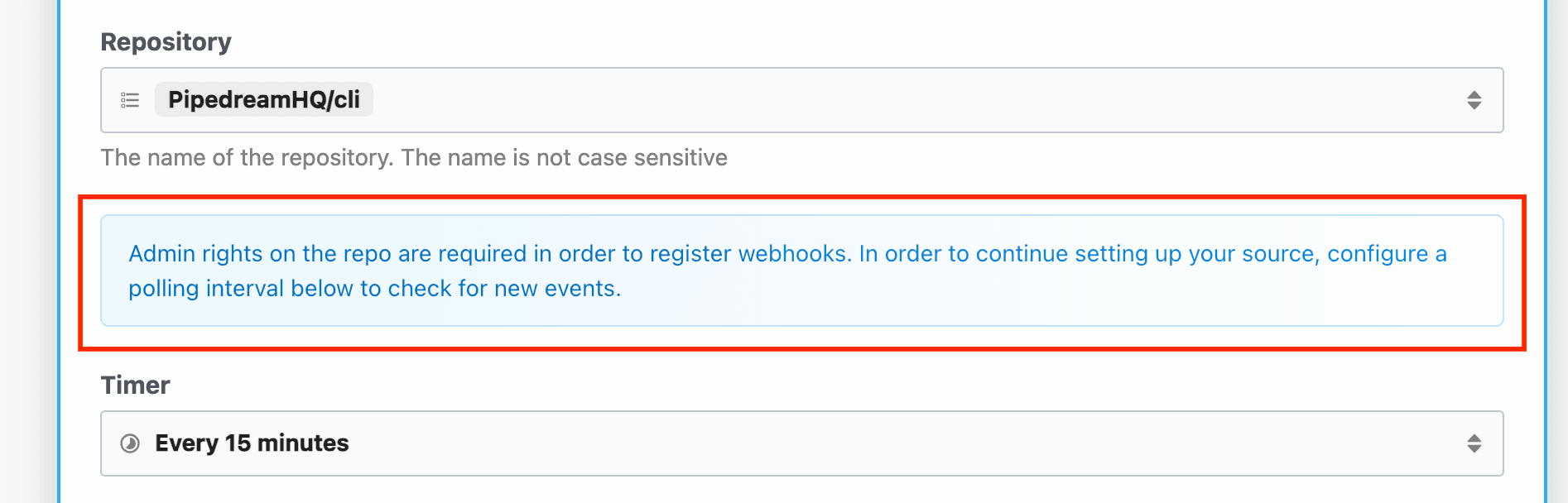

Sometimes you may need to surface contextual information to users within the prop form. This might be information that's not directly related to a specific prop, so it doesn't make sense to include in a prop description, but rather, it may be related to the overall configuration of the prop form.

Usage

export default defineComponent({
  props: {
    alert: {
      type: "alert",
      alertType: "info",
      content: "Admin rights on the repo are required in order to register webhooks. In order to continue setting up your source, configure a polling interval below to check for new events.",
    }
  },
})

Refer to GitHub's component sources in the pipedream repo for an example implementation.

Limits on props

When a user configures a prop with a value, it can hold at most 64KB data. Consider this when accepting large input in these fields (such as a base64 string).

The 64KB limit applies only to static values entered as raw text. In workflows, users can pass expressions (referencing data in a prior step). In that case the prop value is simply the text of the expression, for example {{steps.nodejs.$return_value}}, well below the limit. The value of these expressions is evaluated at runtime, and are subject to different limits.

Methods

You can define helper functions within the methods property of your component. You have access to these functions within the run method, or within other methods.

Methods can be accessed using this.<method-name>. For example, a random method:

methods: {
  random() {
    return Math.random()
  },
}

can be run like so:

const randomNum = this.random();

Hooks

hooks: {
  async deploy() {},
  async activate() {},
  async deactivate() {},
},

Dedupe Strategies

IMPORTANT: To use a dedupe strategy, you must emit an id as part of the event metadata (dedupe strategies are applied to the submitted id)

Run

Each time a component is invoked, its run method is called. Sources are invoked by their interface (for example, via HTTP request). Actions are run when their parent workflow is triggered.

You can reference this within the run method. this refers to the component, and provides access to props, methods, and more.

Sources

When a source is invoked, the event that triggered the source is passed to run, so that you can access it within the method:

async run(event) {
  console.log(event)
}

$emit

this.$emit() is a method in scope for the run method of a source

this.$emit(event, {
  id,
  name,
  summary,
  ts,
});

Following is a basic example that emits an event on each component execution.

export default {
  name: "this.$emit() example",
  description: "Deploy and run this component manually via the Pipedream UI",
  async run() {
    this.$emit({ message: "hello world!" });
  },
};

Logs

You can view logs produced by a source's run method in the Logs section of the Pipedream source UI, or using the pd logs CLI command:

pd logs <deployed-component-name>

Events

If the run method emits events using this.$emit, you can access the events in the EVENTS section of the Pipedream UI for the component, or using the pd events CLI command:

pd events <deployed-component-name>

Actions

When an action is run in a workflow, Pipedream passes an object with a $ variable that gives you access to special functions, outlined below:

async run({ $ }) {
  // You have access to $ within your action
}

Returning data from steps

By default, variables declared within an action are scoped to that action. To return data from a step, you have two options: 1) use the return keyword, or 2) use $.export to return a named export from a step.

return

Use return to return data from an action:

async run({ $ }) {
  return "data"
}

When you use return, the exported data will appear at steps.[STEP NAME].$return_value. For example, if you ran the code above in a step named nodejs, you'd reference the returned data using steps.nodejs.$return_value.

$.export

You can also use $.export to return named exports from an action. $.export takes the name of the export as the first argument, and the value to export as the second argument:

async run({ $ }) {
  $.export("name", "value")
}

When your workflow runs, you'll see the named exports appear below your step, with the data you exported. You can reference these exports in other steps using steps.[STEP NAME].[EXPORT NAME].

Returning HTTP responses with $.respond

$.respond lets you issue HTTP responses from your workflow. See the full $.respond docs for more information.

async run({ $ }) {
  $.respond({
    status: 200,
    body: "hello, world"
  })
}

Ending steps early with return $.flow.exit

return $.flow.exit terminates the entire workflow. It accepts a single argument: a string that tells the workflow why the workflow terminated, which is displayed in the Pipedream UI.

async run({ $ }) {
  return $.flow.exit("reason")
}

$.summary

$.summary is used to surface brief, user-friendly summaries about what happened when an action step succeeds. For example, when adding items to a Spotify playlist:

Example implementation:

const data = [1, 2];
const playlistName = "Cool jams";
$.export(
  "$summary",
  `Successfully added ${data.length} ${
    data.length == 1 ? "item" : "items"
  } to "${playlistName}"`
);

$.send

$.send allows you to send data to Pipedream destinations.

$.send.http

See the HTTP destination docs.

$.send.email

See the Email destination docs.

$.send.s3

See the S3 destination docs.

$.send.emit

See the Emit destination docs.

$.send.sse

See the SSE destination docs.

$.context

$.context exposes the same properties as steps.trigger.context, and more. Action authors can use it to get context about the calling workflow and the execution.

All properties from steps.trigger.context are exposed, as well as:

Environment variables

Environment variables are not accessible within sources or actions directly. Since components can be used by anyone, you cannot guarantee that a user will have a specific variable set in their environment.

In sources, you can use secret props to reference sensitive data.

In actions, you'll see a list of your environment variables in the object explorer when selecting a variable to pass to a step:

Using npm packages

To use an npm package in a component, just require it. There is no package.json or npm install required.

import axios from "axios";

When you deploy a component, Pipedream downloads the latest versions of these packages and bundles them with your deployment.

Some packages that rely on large dependencies or on unbundled binaries — may not work on Pipedream. Please reach out if you encounter a specific issue.

Referencing a specific version of a package

This currently applies only to sources.

If you'd like to use a specific version of a package in a source, you can add that version in the require string, for example: require("axios@0.19.2"). Moreover, you can pass the same version specifiers that npm and other tools allow to specify allowed semantic version upgrades. For example:

• To allow for future patch version upgrades, use require("axios@~0.20.0")
• To allow for patch and minor version upgrades, use require("axios@^0.20.0")

Managing Components

Sources and actions are developed and deployed in different ways, given the different functions they serve in the product.

• Managing Sources
• Managing Actions

Managing Sources

CLI - Development Mode

The easiest way to develop and test sources is with the pd dev command. pd dev deploys a local file, attaches it to a component, and automatically updates the component on each local save. To deploy a new component with pd dev, run:

pd dev <filename>

To attach to an existing deployed component, run:

pd dev --dc <existing-deployed-component-id> <file-or-name>

CLI - Deploy

From Local Code

To deploy a source via CLI, use the pd deploy command.

pd deploy <filename>

E.g.,

pd deploy my-source.js

From Pipedream Github Repo

You can explore the components available to deploy in Pipedream's GitHub repo.

pd deploy <source-key>

E.g.,

pd deploy http-new-requests

From Any URL

pd deploy <url-to-raw-code>

E.g.,

pd deploy https://raw.githubusercontent.com/PipedreamHQ/pipedream/master/components/http/sources/new-requests/new-requests.js

CLI - Update

View the CLI command reference.

CLI - Delete

View the CLI command reference.

UI - Deploy

You can find and deploy curated components at https://pipedream.com/sources/new, or you can deploy code via the UI using following URL patterns.

From Pipedream Github Repo

https://pipedream.com/sources?action=create&key=<source-key>

E.g.,

https://pipedream.com/sources?action=create&key=http-new-requests

From Any URL

https://pipedream.com/sources?action=create&url=<url-encoded-url>

E.g.,

https://pipedream.com/sources?action=create&url=https%3A%2F%2Fraw.githubusercontent.com%2FPipedreamHQ%2Fpipedream%2Fmaster%2Fcomponents%2Fhttp%2Fhttp.js

UI - Update

You can update the code and props for a component from the Configuration tab for a source in the Pipedream UI.

UI - Delete

You can delete a component via the UI at https://pipedream.com/sources.

API

See the REST API docs.

Managing Actions

CLI - Publish

To publish an action, use the pd publish command.

pd publish FILENAME

E.g.,

pd publish my-action.js

Source Lifecycle

Lifecycle hooks

Pipedream sources support the following hooks. The code for these hooks are defined within the component. Learn more about the component structure and hook usage.

deploy

The deploy() hook is automatically invoked by Pipedream when a source is deployed. A common use case for the deploy hook is to create webhook subscriptions when the source is deployed, but you can run any Node.js code within the deploy hook. To learn more about the deploy() hook, refer to the API documentation.

activate

The activate() hook is automatically invoked by Pipedream when a source is deployed or updated. For example, this hook will be run when users update component props, so you can run code here that handles those changes. To learn more about defining a custom activate() hook, refer to the API documentation.

deactivate

The deactivate() hook is automatically invoked by Pipedream when a source is updated or deleted. A common use case for the deactivate hook is to automatically delete a webhook subscription when a component is deleted, but you can run any Node.js code within the deactivate hook. To learn more about the deactivate() hook, refer to the API documentation.

States

Saved Component

A saved component is non-instantiated component code that has previously been deployed to Pipedream. Each saved component has a unique saved component ID. Saved components cannot be invoked directly — they must first be deployed.

Deployed Component

A deployed component is an instance of a saved component that can be invoked. Deployed components can be active or inactive. On deploy, Pipedream instantiates a saved component and invokes the activate() hook.

Deleted Component

On delete, Pipedream invokes the deactivate() hook and then deletes the deployed component instance.

Operations

Deploy

On deploy, Pipedream creates an instance of a saved component and invokes the optional deploy() and activate() hooks. A unique deployed component ID is generated for the component.

You can deploy a component via the CLI, UI or API.

Update

On update, Pipedream, invokes the optional deactivate() hook, updates the code and props for a deployed component, and then invokes the optional activate() hook. The deployed component ID is not changed by an update operation.

Delete

On delete, Pipedream invokes the optional deactivate() hook and deletes the component instance.

Source Event Lifecycle

The event lifecycle applies to deployed sources. Learn about the source lifecycle.

Diagram

Triggering Sources

Sources are triggered when you manually run them (e.g., via the RUN NOW button in the UI) or when one of their interfaces is triggered. Pipedream sources currently support HTTP and Timer interfaces.

When a source is triggered, the run() method of the component is executed. Standard output and errors are surfaced in the Logs tab.

Emitting Events from Sources

Sources can emit events via this.$emit(). If you define a dedupe strategy for a source, Pipedream automatically dedupes the events you emit.

TIP: if you want to use a dedupe strategy, be sure to pass an id for each event. Pipedream uses this value for deduping purposes.

Consuming Events from Sources

Pipedream makes it easy to consume events via:

• The UI
• Workflows
• APIs
• CLI

UI

When you navigate to your source in the UI, you'll be able to select and inspect the most recent 100 events (i.e., an event bin). For example, if you send requests to a simple HTTP source, you will be able to inspect the events (i.e., a request bin).

Workflows

Trigger hosted Node.js workflows on each event. Integrate with 2,000+ apps including Google Sheets, Discord, Slack, AWS, and more!

API

Events can be retrieved using the REST API or SSE stream tied to your component. This makes it easy to retrieve data processed by your component from another app. Typically, you'll want to use the REST API to retrieve events in batch, and connect to the SSE stream to process them in real time.

CLI

Use the pd events command to retrieve the last 10 events via the CLI:

pd events -n 10 <source-name>
